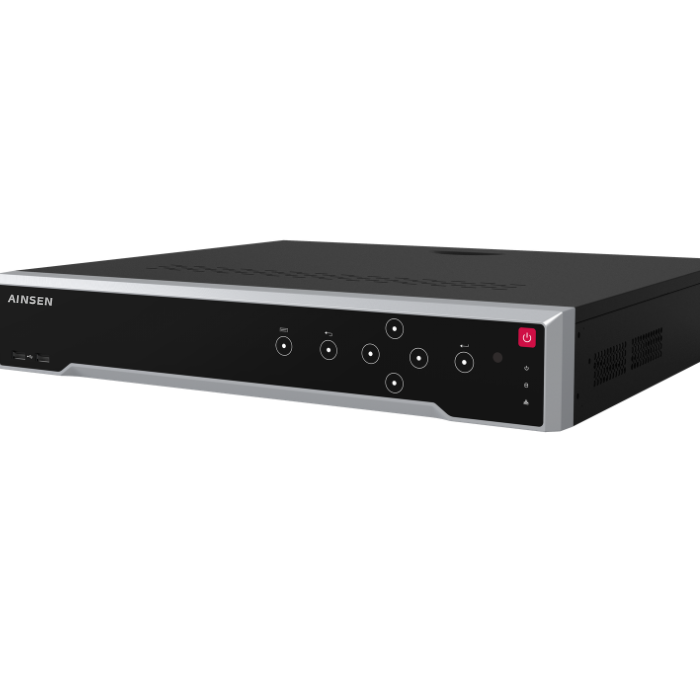

Add products to get started16-channel M-Series 8K NVR with 16 built-in PoE ports, built for large-scale surveillance installations requiring ultra-high resolution and wide camera coverage. It records from up to 16 IP cameras at up to 32 MP (Ultra HD mode enabled) and outputs 8K (7680 x 4320) video via HDMI. Two SATA bays support up to 32 TB total storage (up to 16 TB per HDD). Decoding capability reaches 2-ch at 32 MP or 10-ch at 8 MP simultaneously, with full 16-ch synchronous playback. VCA analytics (line crossing, intrusion, heat map, ANPR, people counting), POS integration, dual-stream recording, and TLS-encrypted stream transmission are all supported. The 200 W PoE budget powers up to 16 cameras. Up to 8 IP speakers can be connected. Powered by 100-240 VAC, it fits a standard 1U rack.
| Product Code | AIN-00035 |
| Model Number | AI-7616NI-M2/16P |
| Brand | AINSEN |
| Category | NVRS |
| Warranty | 1 |
| Weight | ≤ 3 kg (without HDD, 6.6 lb.) |
| Dimensions | 384 × 317 × 52 mm (15.1" × 12.5" × 2.0") |
| Dimension (W×D×H) | 384 × 317 × 52 mm (15.1" × 12.5" × 2.0") |
| Humidity | 10% to 90% (non-condensing) |
| Certifications | FCC Part 15 Subpart B (ANSI C63.4-2014); CE (EN 55032:2015+A1:2020, EN IEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020) |
| IP Video Input | 16 channels, up to 32 MP (Ultra HD mode: 8-ch 32 MP/24 MP) |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Synchronous Playback | 16 channels |
| Decoding Format | H.265+ / H.265 / H.264+ / H.264 |
| Decoding Capability | 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps) / 10-ch@8 MP (30 fps) / 20-ch@4 MP (30 fps) / 40-ch@1080p (30 fps) |
| HDMI Output | 1-ch: 8K (7680×4320)/30Hz; 4K (3840×2160)/60Hz; 4K (3840×2160)/30Hz; 2K (2560×1440)/60Hz; 1920×1080/60Hz |
| VGA Output | 1-ch: 1920×1080/60Hz |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω); PAL: 704×576, NTSC: 704×480 |
| Video Output Mode | HDMI/VGA independent output |
| VCA Analytics | Motion detection, line crossing, intrusion, region entrance/exit, heat map, ANPR, people counting |
| POS Integration | Information overlay on live view and playback; POS-triggered recording and alarm |
| Camera Smart Functions | Configurable per-camera VCA — motion, line crossing, intrusion, heat map, ANPR, people counting |
| Remote Connections | Up to 128 |
| Remote Management | Hik-Connect, DDNS, plug-in-free web access, smooth streaming |
| Max. HDD Capacity | Up to 16 TB per HDD (32 TB total) |
| Form Factor | 1U rack/desktop |
| Operating Temp | -10 °C to 55 °C (14 °F to 131 °F) |
| Dual-Stream Recording | Supported |
| Stream Type | Video; Video & Audio |
| Audio Compression | G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2 |
| IP Speakers | Up to 8 channels |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using audio input) |
| Network Interface | 1× RJ-45 10/100/1000 Mbps self-adaptive Ethernet |
| Camera Access Protocol | ONVIF (v2.5), RTSP |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF v2.2, OTAP |
| PoE Interfaces | 16× RJ-45 10/100 Mbps self-adaptive Ethernet |
| SATA Interfaces | 2 SATA interfaces |
| USB Interfaces | Front: 1× USB 2.0; Rear: 1× USB 3.0 |
| Alarm I/O | 4 alarm inputs / 1 alarm output |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | ≤ 200 W total |
| Power Supply | 100-240 VAC, 50-60 Hz (universal) |
| Power Consumption | ≤ 15 W (without HDD, PoE off) |
