General
| Product Code |
AIN-00034 |
| Model Number |

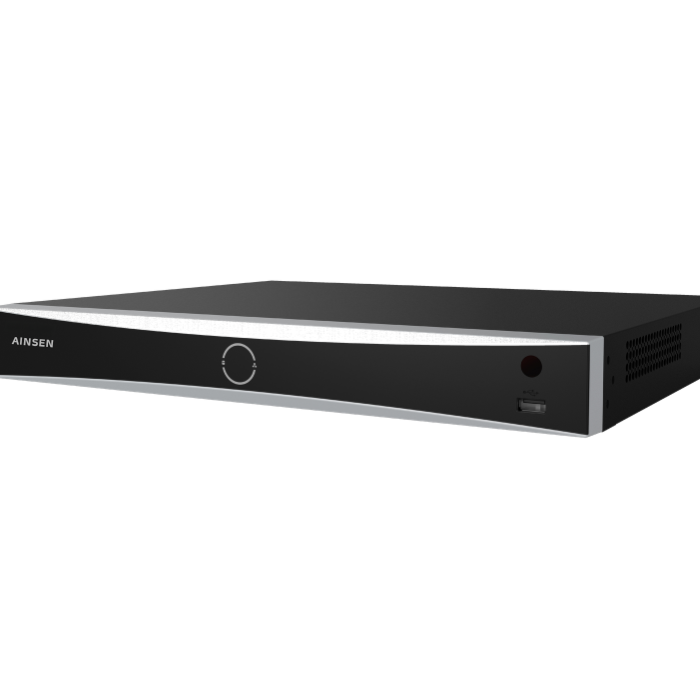

AI-7608NXI-K2/8P |
| Brand |
AINSEN |
| Category |
NVRS |
| Weight |
≤ 3 kg (without HDD, 6.6 lb.) |
| Dimensions |
385 × 315 × 52 mm (15.2" × 12.4" × 2.0") |
| Dimension (W×D×H) |
385 × 315 × 52 mm (15.2" × 12.4" × 2.0") |
| Humidity |
10% to 90% (non-condensing) |
| Certifications |
CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA, BIS |
| AI by Device |
Facial recognition, perimeter protection, motion detection 2.0 |
| AI by Camera |
Facial recognition, perimeter protection, throwing objects from building, motion detection 2.0, ANPR, VCA |
| Face Picture Library |
Up to 16 libraries; up to 20,000 pictures (≤4 MB each, ≤1 GB total) |
| Face Capture Performance |
1-ch @ 8 MP (video stream) |
| Face Picture Comparison |
4-ch |
| Perimeter Protection (Device) |
2-ch, 4 MP — line crossing, intrusion, region entrance/exit; human and vehicle triggered |
| Perimeter Protection (Camera) |
All channels |
| IP Video Input |
8 channels, up to 12 MP |
| Incoming Bandwidth |
80 Mbps |
| Outgoing Bandwidth |
160 Mbps |
| Synchronous Playback |
8 channels |
| Decoding Format |
H.265+ / H.265 / H.264+ / H.264 |
| Decoding (AI ON) |
1-ch@12 MP (30 fps) / 2-ch@8 MP (30 fps) / 4-ch@4 MP (30 fps) / 8-ch@1080p (30 fps) |
| Decoding (AI OFF) |
2-ch@12 MP (30 fps) / 3-ch@8 MP (30 fps) / 6-ch@4 MP (30 fps) / 12-ch@1080p (30 fps) |
| HDMI Output |
1-ch: 4K (3840×2160)/30 Hz; 2K (2560×1440)/60 Hz; 1920×1080/60 Hz; 1600×1200/60 Hz; 1280×1024/60 Hz; 1280×720/60 Hz; 1024×768/60 Hz |
| VGA Output |
1-ch: 1920×1080/60 Hz; 1280×1024/60 Hz; 1280×720/60 Hz |
| Video Output Mode |
HDMI/VGA independent output |
| CVBS Output |
N/A |
| Remote Connections |
Up to 128 |
| API |
ONVIF Profile S/G; SDK; ISAPI |
| Compatible Browsers |
IE11, Chrome V57+, Firefox V52+, Safari V12+, Edge V89+ |
| Max. HDD Capacity |
Up to 10 TB per HDD (20 TB total) |
| Form Factor |
1U rack/desktop |
| Operating Temp |
-10 °C to 55 °C (14 °F to 131 °F) |
| GUI Languages |
40+ languages including English, Arabic, French, German, Spanish, Russian, Chinese, Japanese, Korean |
| Note |
Facial recognition, Motion Detection 2.0, and Perimeter Protection cannot be enabled simultaneously |
Camera
| Recording Resolution |
12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
Video
| Stream Type |
Video; Video & Audio |
| Audio Compression |
G.711ulaw / G.711alaw / G.722 / G.726 / AAC |
Audio
| Audio Output |
1-ch, RCA (2.0 Vp-p, 1 KΩ, using audio input) |
| Two-Way Audio |
1-ch, RCA (Linear, 1 KΩ) |
Network
| Network Interface |
1× RJ-45 10/100/1000 Mbps self-adaptive Ethernet |
| Network Protocols |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| PoE Interfaces |
8× RJ-45 10/100 Mbps self-adaptive Ethernet |
| SATA Interfaces |
2 SATA interfaces |
| USB Interfaces |
Front: 1× USB 2.0; Rear: 1× USB 2.0 |
Alarm
| Face Detection & Analytics |
Face picture comparison, human face capture, face picture search |
| Motion Detection 2.0 (Device) |
All channels, 4 MP (up to 8 MP with enhanced SVC mode) — human/vehicle recognition |
| Motion Detection 2.0 (Camera) |
All channels |
| Alarm I/O |
4 alarm inputs / 1 alarm output |
Power
| PoE Standard |
IEEE 802.3af/at |
| PoE Budget |
≤ 80 W total |
| Power Supply |
48 VDC, 2.5 A |
| Power Consumption |
≤ 15 W (without HDD, PoE off) |
*Product performance is based on testing in a controlled environment. Your results may vary.
