Image Sensor: 2 × 1/1.8" Progressive Scan CMOS

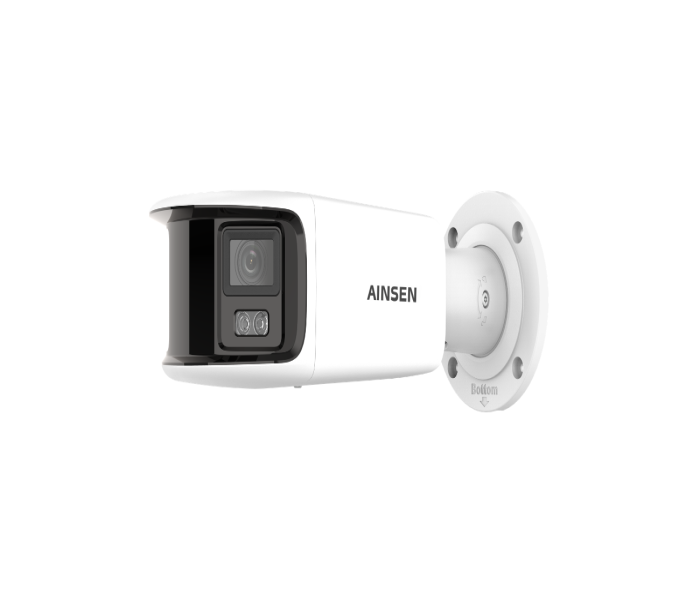

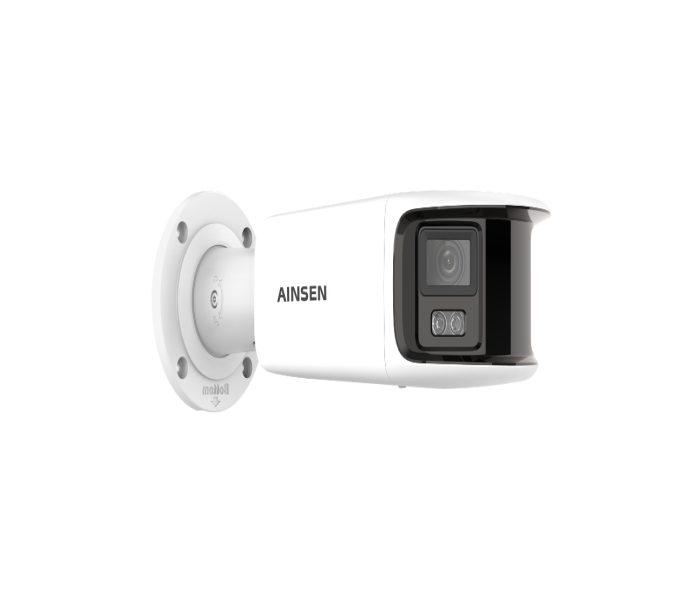

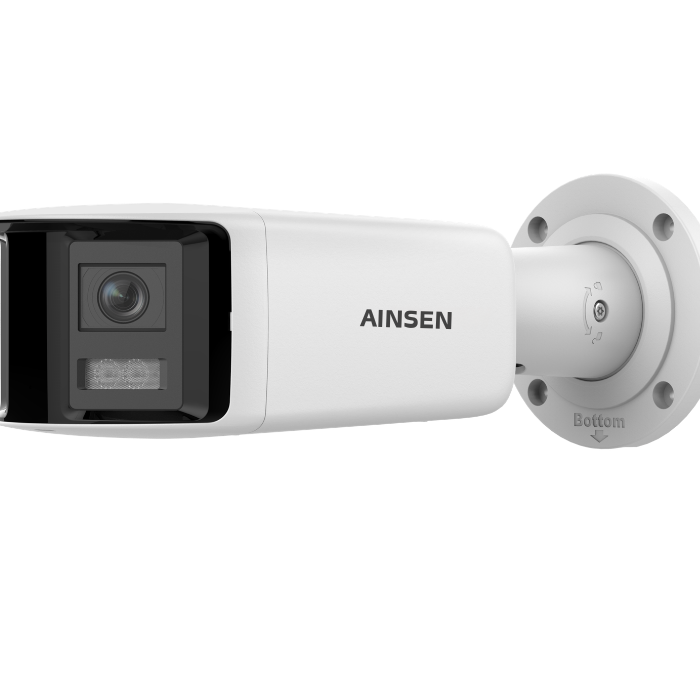

8 MP Panoramic Full Color Fixed Bullet Network Camera that uses dual 1/1.8" CMOS sensors and dual 4 mm F1.0 super-aperture lenses to deliver a single stitched panoramic image at 5120 × 1440 resolution with a 180° horizontal field of view — eliminating blind spots across wide areas with one camera. Full Color technology provides 24/7 vivid full-color imaging down to 0.0005 Lux with white light illumination up to 40 m. It adds AcuSense deep-learning human/vehicle classification, 130 dB WDR, active strobe light and audio alarm deterrence, built-in two-way audio, on-board microSD storage up to 512 GB with ANR, alarm I/O, and IP67 weatherproofing — powered via a single PoE cable.
| Product Code | AIN-00028 |
| Model Number | AI-2CD2T87G2P-LSU/SL |
| Brand | AINSEN |
| Category | CAMERAS AND SURVEILLIANCE |
| Weight | Approx. 1590 g (3.5 lb.) |
| IP Rating | IP67 |
| Package Weight | Approx. 2280 g (5.0 lb.) |
| Humidity | 95% or less (non-condensing) |
| Certifications | FCC (47 CFR Part 15B), CE-EMC, RCM, IC, UL 62368-1, CB, CE-LVD, CE-RoHS, WEEE, REACH |
| White Light Range | Up to 40 m (131 ft) |
| Iris Type | Fixed |
| Depth of Field | 3.6 m to ∞ |
| BLC / HLC | Yes |
| Strobe Light | Built-in, active deterrence |
| Perimeter Protect. | Line crossing, intrusion, region entrance/exit (human and vehicle triggered) |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance — adjustable via client software or web browser |
| General Function | Anti-banding, heartbeat, flash log, pixel counter, password reset via email |
| Users | Up to 32 — 3 levels: administrator, operator, user; 6 simultaneous live view channels |
| Operating Temp | -30 °C to 60 °C (-22 °F to 140 °F) |
| Languages | 33 languages including English, French, German, Spanish, Portuguese, Chinese, Japanese, Korean |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Max. Frame Rate | Up to 20 fps @ 5120 × 1440 |
| Audio Compression | G.711ulaw/G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC |
| Audio In | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, impedance: 4.7 KΩ |
| Audio Out | 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, impedance: 100 Ω |
| Built-in Speaker | Max. power: 1 W, max. sound pressure: 97 dB @ 10 cm |
| Two-Way Audio | Yes (built-in microphone and speaker) |
| Audio Alarm | Built-in audible warning |
| On-Board Storage | microSD/microSDHC/microSDXC/TF card, up to 512 GB; memory card encryption & health detection |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Network Interface | 1× RJ45 10M/100M Ethernet self-adaptive |
| ONVIF | Profile S, G, T |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket |
| Alarm I/O | 1 alarm input / 1 alarm output (max. 24 VDC, 1 A) |
| Basic Event | Motion detection (human/vehicle), alarm input/output, flashing alarm light output, audible alarm output, exception |
| Smart Event | Line crossing, intrusion, region entrance, region exiting, scene change detection |
| Power | 12 VDC ±25%, 0.88 A, max. 10.5 W (Ø5.5 mm coaxial, reverse polarity protection) / PoE 802.3af Class 3, 36–57 V, max. 12.5 W |
