General
| Product Code |
AIN-00026 |
| Model Number |
AI-2CD2T67G2P-LSU/SL |
| Brand |
AINSEN |
| Category |
CAMERAS AND SURVEILLIANCE |
| Weight |
Approx. 1400 g (3.1 lb.) |
| Dimensions |
118.6 mm × 105.1 mm × 306.5 mm (4.7" × 4.1" × 12.1") |
| IP Rating |
IP67 |
| Dimension |
118.6 mm × 105.1 mm × 306.5 mm (4.7" × 4.1" × 12.1") |
| Package Dimension |
405 mm × 190 mm × 180 mm (16" × 7.5" × 7.1") |
| Package Weight |
Approx. 2100 g (4.6 lb.) |
| Humidity |
95% or less (non-condensing) |
| Certifications |
FCC (47 CFR Part 15B), CE-EMC, RCM, IC, UL 62368-1, CB, CE-LVD, CE-RoHS, WEEE, REACH |
| Supplement Light |
White Light, Smart Supplement Light |
| BLC / HLC |
Yes |
| Strobe Light |
Built-in, active deterrence |
| Perimeter Protect. |
Line crossing, intrusion, region entrance/exit (human and vehicle triggered) |
| Image Settings |
Saturation, brightness, contrast, sharpness, gain, white balance — adjustable via client/web |
| General Function |
Anti-banding, heartbeat, flash log, pixel counter |
| Users |
Up to 32 — 3 levels: administrator, operator, user; 6 simultaneous live view channels |
| Material |
Front cover: metal, body: metal, bracket: metal |
| Operating Temp |
-30 °C to 60 °C (-22 °F to 140 °F) |
| Languages |
33 languages including English, French, German, Spanish, Portuguese, Chinese, Japanese, Korean |
Lens
| Lens Type |

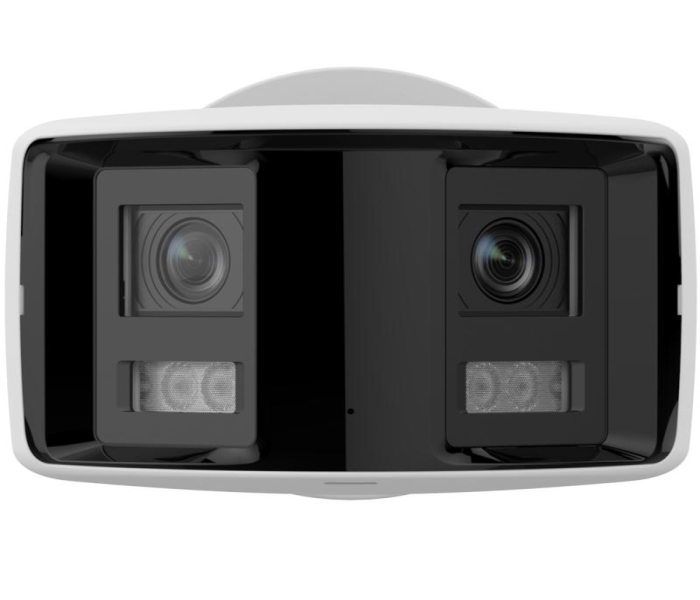

Fixed focal lens, dual lens: 2.8 mm |
| Aperture |
F1.0 |
| DORI |
D: 45 m, O: 17.5 m, R: 9 m, I: 4.5 m |
Video
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Max. Frame Rate |
Up to 20 fps @ 3632 × 1632 |
| Audio Compression |
G.711ulaw/G.711alaw / G.722.1 / G.726 / MP2L2 / MP3 / AAC-LC |
Audio
| Audio In |
1 input (line in), terminal block, max. input amplitude 3.3 Vpp |
| Audio Out |
1 output (line out), terminal block, max. output amplitude 3.3 Vpp |
| Built-in Speaker |
Max. power 1 W, max. sound pressure level 97 dB @ 10 cm |
| Audio Alarm |
Built-in audible warning |
Storage
| On-Board Storage |
microSD/microSDHC/microSDXC; memory card encryption & health detection |
| Network Storage |
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
Network
| Network Interface |
1× RJ45 10M/100M Ethernet self-adaptive |
| ONVIF |
Profile S, G, T |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket |
Alarm
| Alarm I/O |
1 alarm input / 1 alarm output (max. 24 VDC/24 VAC, 1 A) |
| Basic Event |
Motion detection (human/vehicle), alarm input/output, flashing alarm light output, audible alarm output, exception |
| Smart Event |
Line crossing, intrusion, region entrance, region exiting, scene change detection |
| Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing |
Power
| Power |
12 VDC ±25%, 0.88 A, max. 10.5 W (Ø5.5 mm coaxial, reverse polarity protection) / PoE 802.3af Class 3, 36–57 V, max. 12.5 W |
*Product performance is based on testing in a controlled environment. Your results may vary.
