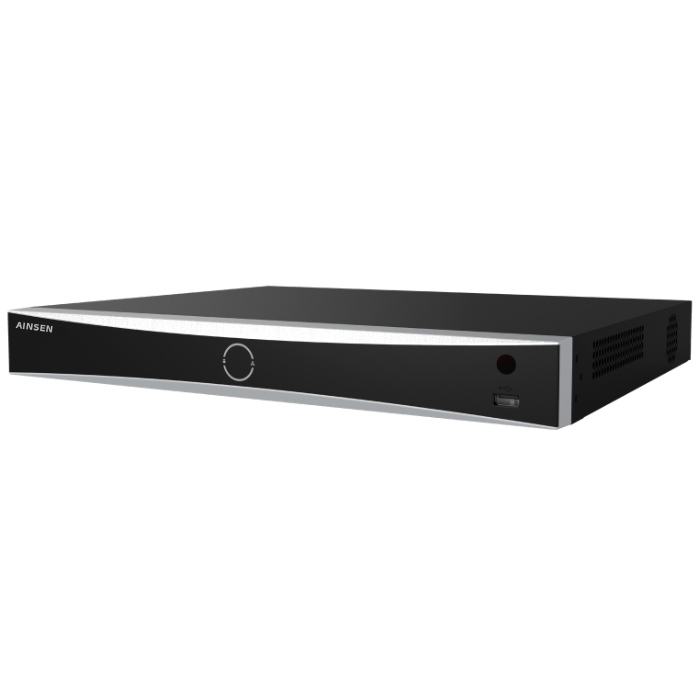

Add products to get started4-channel 1U AcuSense 4K Network Video Recorder (NVR) with 4 built-in PoE ports for plug-and-play camera connection. It records from up to 4 IP cameras at resolutions up to 12 MP, outputs 4K video via HDMI, and stores footage on a single SATA HDD (up to 10 TB). AcuSense deep-learning technology filters out irrelevant alarms by classifying targets as human or vehicle across all 4 channels. Face capture, 2-channel face picture comparison, smart search, and smart playback are built in. H.265+ compression reduces storage requirements by up to 75%. Encrypted stream transmission via TLS provides secure data transfer. Ideal for small to medium installations — homes, offices, retail, and small businesses.
| Product Code | AIN-00054 |
| Model Number | AI-7604NXI-K1/4P |
| Brand | AINSEN |
| Category | NVRS |
| Weight | ≤ 1 kg (2.2 lb.) without HDD |
| Dimensions | 320 × 240 × 48 mm (12.6" × 9.4" × 1.9") |
| Dimension (W×D×H) | 320 × 240 × 48 mm (12.6" × 9.4" × 1.9") |
| Humidity | 10% to 90% (non-condensing) |
| Certifications | FCC Part 15 Subpart B; CE (EN 55032, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035) |
| AcuSense | Human/Vehicle Analysis — 4 channels |
| Face Capture | 1-ch (video stream); 2-ch face picture comparison alarm |
| Face Picture Library | Up to 16 libraries; up to 20,000 pictures total (≤4 MB each, ≤1 GB total) |
| IP Video Input | 4 channels |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Synchronous Playback | 4 channels |
| Decoding Format | H.265 / H.265+ / H.264+ / H.264 |
| Decoding Capacity (AI ON) | 1-ch@12 MP (30 fps) / 1-ch@8 MP (30 fps) / 3-ch@4 MP (30 fps) / 6-ch@1080p (30 fps) |
| Decoding Capacity (AI OFF) | 1-ch@12 MP (30 fps) / 2-ch@8 MP (30 fps) / 4-ch@4 MP (30 fps) / 8-ch@1080p (30 fps) |
| HDMI Output | 1-ch, 4K (3840×2160)/30 Hz; 2K (2560×1440)/60 Hz; 1920×1080/60 Hz; 1600×1200/60 Hz; 1280×1024/60 Hz; 1280×720/60 Hz |
| VGA Output | 1-ch, 1920×1080/60 Hz; 1280×1024/60 Hz; 1280×720/60 Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Remote Connections | Up to 128 |
| Max. HDD Capacity | Up to 10 TB per HDD |
| Form Factor | 1U desktop |
| Operating Temp | -10 °C to 55 °C (14 °F to 131 °F) |
| Stream Type | Video; Video & Audio |
| Audio Compression | G.711ulaw / G.711alaw / G.722 / G.726 / AAC |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) using audio input |
| Network Interface | 1× RJ-45 10/100/1000 Mbps self-adaptive Ethernet |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP v2c/v3, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| PoE Interfaces | 4× RJ-45 10/100 Mbps self-adaptive Ethernet |
| SATA Interfaces | 1 SATA interface |
| USB Interfaces | Front: 1× USB 2.0; Rear: 1× USB 2.0 |
| Motion Detection 2.0 | All 4 channels |
| Alarm I/O | N/A (optional: 4 inputs / 1 output with /Alarm4+1 suffix) |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | ≤ 50 W total |
| Power Supply | 48 VDC, 1.35 A |
| Power Consumption | ≤ 10 W (without HDD, PoE off) |
