Image Sensor: 1/1.8" Progressive Scan CMOS

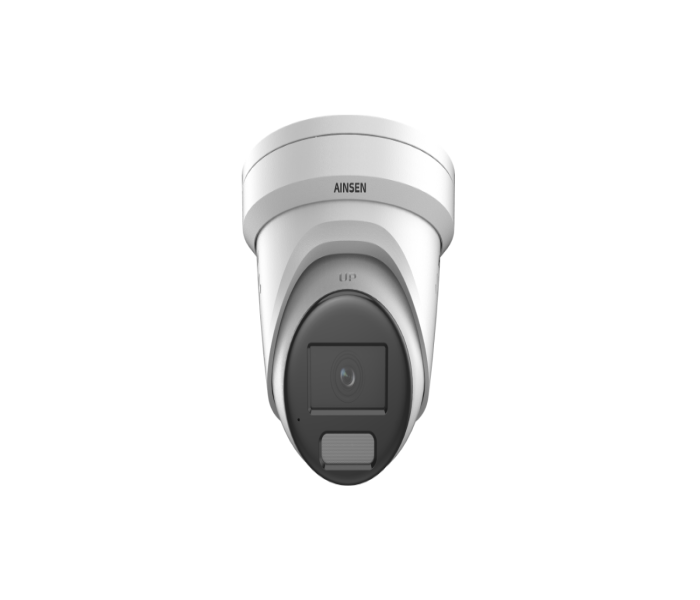

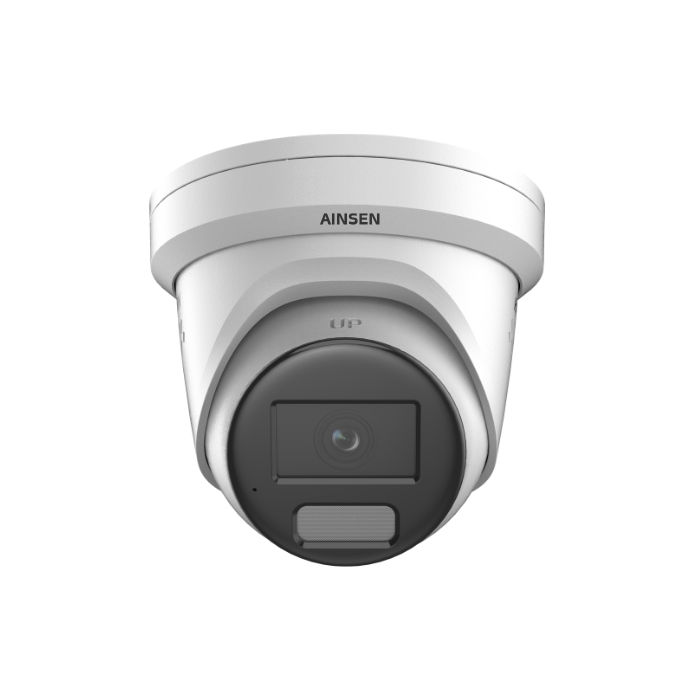

8 MP Smart Hybrid Light with Full Color Fixed Turret camera. It combines AINSEN'S Smart Hybrid Light (automatic switching between IR and white light based on detection) with 24/7 Full-Color imaging, AcuSense deep-learning human/vehicle classification, face capture, active strobe light and audio alarm deterrence, built-in two-way audio, and IP67 weatherproofing. Powered via PoE (IEEE 802.3af), it supports on-board storage up to 512 GB.
| Product Code | AIN-00022 |
| Model Number | AI-2CD2387G2H-LISU/SL |
| Brand | AINSEN |
| Category | CAMERAS AND SURVEILLIANCE |
| Weight | Approx. 820 g (1.8 lb.) |
| Dimensions | Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") |
| IP Rating | IP67 |
| Dimension | Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") |
| Package Weight | Approx. 1316 g (2.9 lb.) |
| Humidity | 95% or less (non-condensing) |
| Certifications | CE-EMC, CE-LVD, RCM, IC, KC, UL, CB, BIS |
| Light Type | IR + White Light (Smart Hybrid) |
| Light Range | Up to 30 m |
| Depth of Field | 2.8 mm: 3.3 m to ∞ / 4 mm: 3.8 m to ∞ |
| BLC / HLC | Yes |
| Strobe Light | Built-in, active deterrence |
| Deep Learning | Face Capture, human/vehicle classification, perimeter protection |
| Perimeter Protect. | Line crossing, intrusion, region entrance/exit (human and vehicle) |
| General Function | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
| Users | Up to 32 — 3 levels: administrator, operator, user |
| Material | Metal |
| Operating Temp | -30 °C to 60 °C (-22 °F to 140 °F) |
| Languages | 33 languages including English, French, German, Spanish, Portuguese, Chinese, Japanese, Korean |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Main Stream | 50 Hz: 25 fps @ 3840×2160 / 60 Hz: 24 fps @ 3840×2160, 30 fps @ lower res |
| Sub Stream | 50/60 Hz: 25/30 fps @ 1280×720, 640×480, 640×360 |
| Third Stream | 50/60 Hz: 10 fps @ 1920×1080, 1280×720 |
| Audio Compression | G.711ulaw/G.711alaw / G.722.1 / G.726 / MP2L2 / MP3 / AAC-LC |
| Audio In | Built-in microphone; 1× audio input interface |
| Audio Out | Built-in speaker (1.2 W, 95 dB @ 10 cm); 1× audio output interface |
| Two-Way Audio | Yes |
| Audio Alarm | Built-in audible warning |
| On-Board Storage | microSD/microSDHC/microSDXC, up to 512 GB |
| Network Interface | 1× RJ45 10M/100M Ethernet self-adaptive |
| ONVIF | Profile S, G, T |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
| Alarm I/O | 1 alarm input / 1 alarm output (max. 24 VDC/24 VAC, 1 A) |
| Basic Event | Motion detection (human/vehicle), video tampering, exception |
| Smart Event | Line crossing, intrusion, region entrance, region exiting |
| Linkage | Upload to FTP/NAS/memory card, notify centre, send email, trigger record/capture, audible warning, strobe light, trigger alarm output |
| Power | 12 VDC ±25%, 0.75 A, max. 9 W / PoE IEEE 802.3af Class 3, max. 10.5 W |
