Image Sensor: 2 × 1/1.8" Progressive Scan CMOS

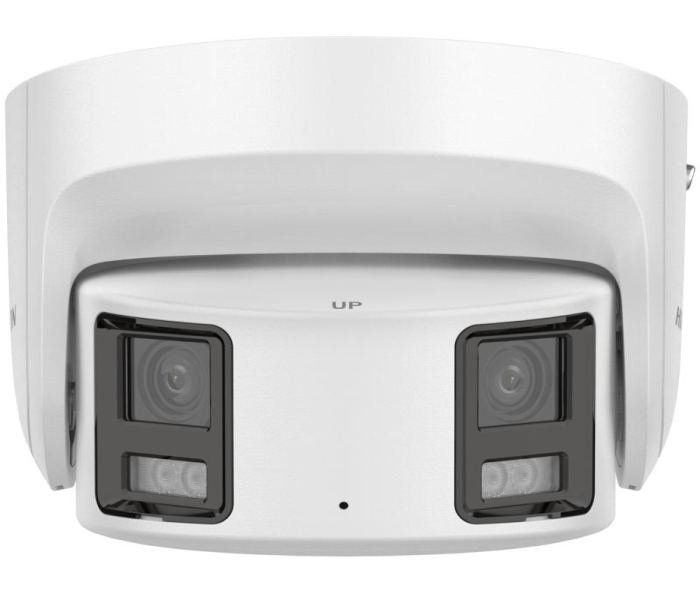

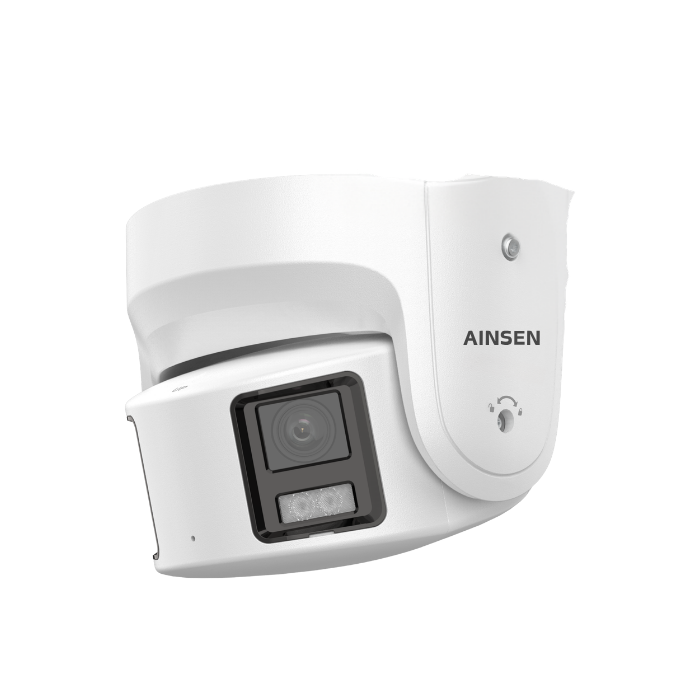

8 MP Panoramic Full Color Fixed Turret Network Camera that uses a dual 1/1.8" CMOS sensor and dual 4 mm F1.0 lenses to deliver a single stitched panoramic image with a 180° horizontal field of view at 5120 × 1440 resolution. Full Color technology provides 24/7 vivid full-color imaging down to 0.0005 Lux, with Smart Supplement white light up to 30 m. It adds AcuSense deep-learning human/vehicle classification, 130 dB WDR, active strobe light and audio alarm deterrence, H.265+ compression, on-board microSD storage up to 512 GB, and IP67 weatherproofing — eliminating blind spots across wide perimeters with a single camera.
| Product Code | AIN-00024 |
| Model Number | AI-2CD2387G2P-LSU/SL |
| Brand | AINSEN |
| Category | CAMERAS AND SURVEILLIANCE |
| Weight | Approx. 1110 g (2.4 lb.) |
| IP Rating | IP67 |
| Package Weight | Approx. 1900 g (4.2 lb.) |
| Humidity | 95% or less (non-condensing) |
| Certifications | FCC (47 CFR Part 15B), CE-EMC, RCM, IC |
| Iris Type | Fixed |
| Depth of Field | 3.6 m to ∞ |
| Supplement Light | White Light, up to 30 m, Smart Supplement Light |
| BLC / HLC | Yes |
| Strobe Light | Built-in, active deterrence |
| Perimeter Protect. | Line crossing, intrusion, region entrance/exit (human and vehicle triggered) |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance — adjustable via client/web |
| Users | Up to 32 — 3 levels: administrator, operator, user; 6 simultaneous live view channels |
| Operating Temp | -30 °C to 60 °C (-22 °F to 140 °F) |
| Languages | 33 languages including English, French, German, Spanish, Portuguese, Chinese, Japanese, Korean |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Max. Frame Rate | Up to 20 fps @ 5120 × 1440 (WDR off) |
| Audio In | 1 input (line in), max. input amplitude 3.3 Vpp |
| Audio Out | 1 output (line out), max. output amplitude 3.3 Vpp |
| Audio Alarm | Built-in audible warning |
| On-Board Storage | microSD/microSDHC/microSDXC, up to 512 GB; ANR |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Network Interface | 1× RJ45 10M/100M Ethernet self-adaptive |
| ONVIF | Profile S, G, T |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, NTP, SMTP, SNMP, FTP, RTSP, RTP, PPPoE, ISUP, 802.1X, QoS, IPv6, Bonjour |
| Alarm I/O | 1 alarm input / 1 alarm output (max. 24 VDC, 1 A) |
| Basic Event | Motion detection (human/vehicle), video tampering, exception, flashing/audible alarm output |
| Smart Event | Line crossing, intrusion, region entrance, region exiting, scene change detection |
| Power | 12 VDC ±25%, 0.88 A, max. 10.5 W (Ø5.5 mm coaxial) / PoE 802.3af Class 3, 36–57 V, max. 12.5 W |
